Why FM-200 Fire Suppression Systems Are the First Choice for High-Value Asset Protection
FM-200 (HFC-227ea) is a widely adopted clean-agent fire suppression gas designed to protect sensitive assets without collateral damage. Chemours notes that FM-200 “is used in thousands of applications – including cultural property, data centers, and critical infrastructure”. In practice, FM-200 is stored as a pressurized liquid and discharged as a gas that rapidly extinguishes fires. Unlike water or dry chemicals, FM-200 leaves virtually no residue and is non-conductive and non-corrosive, so it won’t harm electronics or artifacts. It’s also approved for occupied spaces: because FM-200 suppresses fire by heat absorption (not oxygen displacement), it is safe at design concentrations for people.
How FM-200 Works
FM-200 systems deploy agent through a network of pipes and nozzles into a sealed room. When fire detectors trigger, FM-200 is released as a dense, colorless vapor that floods the protected volume. The gas absorbs heat energy to dramatically lower flame temperature and interrupts the combustion reaction. This two-pronged attack – rapid heat absorption and chemical-chain disruption – snuffs the fire in roughly 10 seconds or less, minimizing damage. Importantly, FM-200 “leaves little to no residue” after a discharge, so there’s virtually no clean-up required. Afterward, the protected space can often resume operation quickly.
FM-200 is stored in compact, nitrogen-pressurized cylinders (red tanks, above) in liquid form. Upon activation, the liquid rapidly vaporizes and disperses as a gas. Because the agent packs a lot of fire-suppressing power per pound, FM-200 systems require significantly less storage space than alternatives. Chemours notes FM-200 uses up to seven times less cylinder space than CO₂ or inert-gas systems to protect the same hazard. This space-efficiency is a boon in tight server rooms or equipment vaults.
Key Advantages
- Fast, Space-Saving Protection: FM-200 can knock down fires in about 10 seconds, far quicker than most sprinkler delays. Its pressurized-liquid storage means more agent in less room (up to 7× more efficient than high-pressure gas systems).
- Clean and Non-Damaging: The gas is odorless and electrically non-conductive. It extinguishes fire without soaking equipment in water or coating surfaces with foam or powder. Red Seal Fire Protection notes that FM-200 “leaves little to no residue”, so critical electronics, artwork, books, and fabrics emerge unscathed.
- Safe for Occupants: FM-200 works by heat removal, not oxygen deprivation. Per Fireline’s analysis, FM-200 is safe for humans at the concentrations used to fight fires. Because it doesn’t displace oxygen, visibility remains clear during discharge and people can evacuate calmly. (By contrast, CO₂ systems are not recommended in occupied spaces due to suffocation risk.)
- Rapid Business Recovery: With no water damage or bulky cleanup, businesses can often resume operations soon after an FM-200 discharge. Colocation America emphasizes that clean-agent systems like FM-200 “won’t leave any residual substances” and require no cleanup, so downtime and data loss are minimized.
Applications: Where FM-200 Shines
FM-200 is chosen wherever high-value equipment or irreplaceable contents must be protected without collateral harm. Facility managers, IT directors, and museum curators all trust FM-200 for these reasons:
- Data Centers and Server Rooms: These environments teem with electronics that cannot get wet. FM-200 (and similar clean agents) are ideal because they extinguish fires without shorting out servers. Experts note “the best fire protection” for data centers is a clean-agent system (such as FM-200 or inert gas) precisely because it “quickly extinguishes fires without leaving residue or damaging sensitive electronic equipment”. In fact, NFPA 75 (the fire-protection standard for IT rooms) mandates clean-agent suppression in computer equipment areas. FM-200’s rapid discharge and no-water characteristics keep downtime and data loss to a minimum.

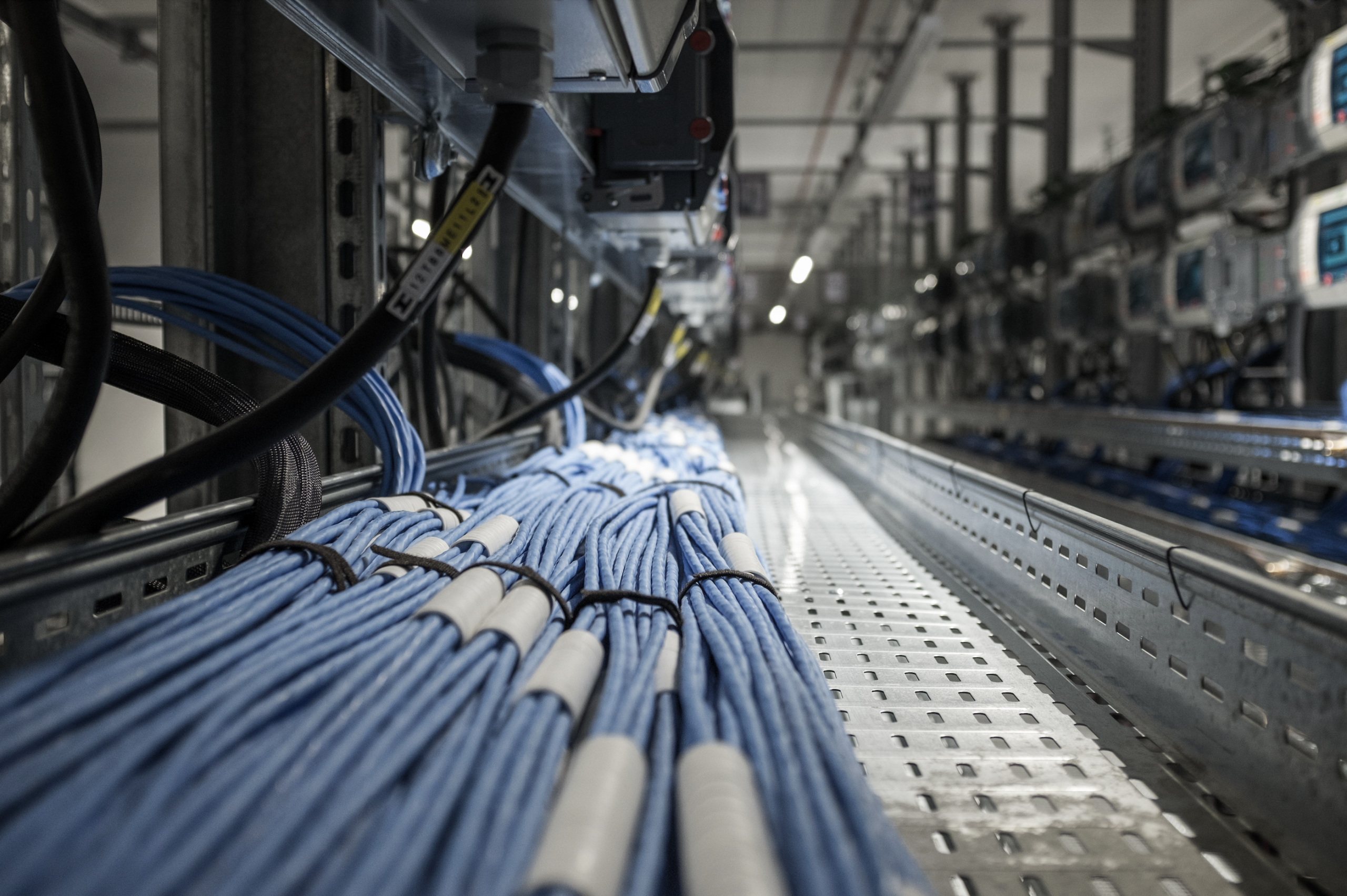

For example, in a modern server room (above), FM-200 cylinders and piping can quietly guard racks of gear. In a real-world case, Chemours reports FM-200 is widely used to protect “data centers” around the world. By stopping fires in ~10 seconds, FM-200 systems let data centers avoid catastrophic failures and hours of drying-out equipment. - Museums, Archives, and Libraries: In cultural institutions, even minor water or dust damage can ruin priceless artifacts, documents, or artworks. FM-200’s clean, gas-phase approach makes it a top choice. Red Seal Fire notes that FM-200 is used in “Archives and Museums: preserving valuable artifacts and documents without leaving residue”. Likewise, Colocation America points out that clean agents “can be used for a server room in a data center or an exhibit in a museum” and “won’t damage any of these assets like traditional water or foam fire extinguishers can”. In practice, a museum curator can confidently install FM-200 in exhibit halls or storage vaults knowing the system will knock out flames without collateral harm to the collection.
- Telecommunications, Control Rooms, and Laboratories: Any facility that houses critical electronics or flammables benefits from FM-200. Telephony exchanges, broadcast stations, hospital imaging rooms, and industrial control rooms all use clean-agent systems. For example, Red Seal highlights telecommunications facilities and control rooms as FM-200 applications. Chemical and biotech labs often install FM-200 to protect sensitive instruments and records from solvent fires. In each case, FM-200 offers high performance and rapid response without risking equipment damage.
- Commercial Kitchens and Restaurants (Non-cooking areas): It’s important to note that FM-200 is not used for active cooking surfaces. In restaurant kitchens, specialized hood-suppression systems with wet-chemical (Class K) agents are required to fight grease fires. NFPA 96 and industry practice call for wet-chemical agents (like potassium acetate solutions) in hoods and over fryers, because these agents saponify burning oils. Clean-agent systems are generally not installed over grills or fryers. (As one expert notes, “because of the potential for grease fires…most hood suppression systems utilize wet chemicals that are designed to extinguish cooking fires”.) However, restaurants do benefit from FM-200 in non-kitchen areas – for instance, protecting an IT closet, manager’s office, or supply room. There, FM-200 can quickly suppress an electrical fire without dousing inventory in water.
Comparing Fire Suppression Options
When choosing a fire-suppression system, it’s crucial to match the agent to the hazard. Here’s how FM-200 stacks up against common alternatives:
- Wet-Chemical (Kitchen Hood) Systems: These are specifically designed for grease/oil fires in cooking areas (e.g. Ansul R-102, Pyro-Chem K-Series). They discharge a fine mist of alkaline liquid that cools and forms a soap-like layer on burning grease. This saponification process is excellent for restaurant kitchens, but it’s not suitable outside that niche. Wet-chem systems leave residue (a yellowish film) and can corrode equipment over time. Because of these limits, facility managers do not use FM-200 to protect stoves or fryers – instead, NFPA 96-compliant wet-chemical hoods are mandatory.
- Dry Chemical Extinguishers: Portable ABC or BC powder systems are widely used, especially for fast response. They knock out many fire types quickly, but at a cost: the discharged powder leaves a thick, corrosive residue. Cleanup is extensive, and electronics usually must be rebuilt or replaced after a dry-chem agent release. For this reason, large rooms with sensitive gear avoid full-scale dry-chemical systems. (Impact Fire notes that in server rooms, any stray smoke or chemical residue can “corrode components and lead to data loss”.)
- CO₂ Systems: Carbon dioxide fire suppression releases CO₂ gas to displace oxygen around the fire. It’s residue-free and effective on many fires, but unsuitable for occupied spaces. Since CO₂ extinguishes by oxygen removal, anyone left in the room can suffocate. Current standards prohibit total-oxygen systems in places where people may be present. In effect, CO₂ is now mostly limited to unoccupied industrial settings. FM-200, by contrast, extinguishes by heat absorption, so it is approved for offices, data centers, and other areas where personnel might be.
Conclusion
FM-200 fire suppression is a tried-and-true solution for protecting critical facilities. It offers extremely fast fire knockdown, protects people and assets, and sidesteps the collateral damage of water or foam. Fire safety experts emphasize FM-200’s role in “safeguarding critical environments” and protecting “the world’s most crucial and irreplaceable assets”. For data center managers and museum curators alike, FM-200 delivers peace of mind: fires are extinguished swiftly, and servers or precious artifacts survive untouched.
When selecting a system, facility planners should consider the specific hazards. For cooking fire risks, wet-chemical hood systems remain mandatory; for general building protection, sprinklers provide broad coverage; but for server rooms, archives, and high-value equipment spaces, FM-200 (or a similar clean agent) is often the ideal choice. With proper design, installation and maintenance per NFPA standards, an FM-200 system can provide reliable, code-compliant fire protection while keeping damage and downtime to an absolute minimum.
Sources: Authoritative fire-protection references and manufacturer data sheets on FM-200 and clean-agent suppression.
Frequently Asked Questions Regarding FM-200 Fire Suppression Systems
What is an FM-200 fire suppression system and how does it work?
An FM-200 fire suppression system uses a clean, colorless gas (HFC-227ea) to extinguish fires without damaging sensitive equipment. Stored as a liquid in pressurized cylinders, FM-200 vaporizes upon discharge and absorbs heat while disrupting the chemical combustion process. It suppresses fires in less than 10 seconds and leaves no residue.
Is FM-200 safe for use in occupied spaces?
Yes. FM-200 is safe for people when used at design concentrations. It suppresses fire by removing heat rather than displacing oxygen, so visibility remains clear and occupants can evacuate safely during a discharge.
What types of facilities should use FM-200 fire suppression systems?
FM-200 fire suppression systems are ideal for data centers, server rooms, museums, archives, libraries, control rooms, and telecommunications facilities—anywhere sensitive electronics or irreplaceable assets need protection without water or powder damage.
How does FM-200 compare to CO₂ or dry chemical systems?
Unlike CO₂, FM-200 is safe for occupied areas and doesn’t displace oxygen. Compared to dry chemical agents, FM-200 leaves no corrosive residue and requires minimal cleanup. It also uses far less storage space than CO₂ or inert gas systems.
Can FM-200 be used in commercial kitchens?
FM-200 is not used for active cooking areas. Commercial kitchens use wet-chemical suppression systems (per NFPA 96) to fight grease fires. However, FM-200 may be installed in non-cooking zones within a restaurant, such as IT rooms or storage areas, to protect electronics and inventory.
